Anatomy of a Legion (Early Principate, 30 BC–AD 96)

Anatomy of a Legion (Early Principate, 30 BC–AD 96)

The ancient world's only permanent institution: forty-eight hundred heavy foot, an engineering staff, an artillery park, and a mobile mint, designed to conquer space and then pave it.

DESIGN BRIEF: INFOGRAPHIC VI-G02

Overview

  • Title: VI-G02: ANATOMY OF A LEGION
  • Subject: The structural, technical, and engineering organization of the Augustan–Flavian standing legion (legio) and its transformation into the world-state's permanent operational and infrastructure machine.
  • Tone & Register: Exact, administrative, architectural, staff-history schematic. Zero mysticism; all numbers graded according to Imperium Romanum editorial standards.

Palette & Styling

  • Ground: Warm antique cream (#F4EBD5)
  • Framing & Borders: Terracotta (#A85638)
  • Primary Structural Blocks (Citizens / Infantry / Standards): Roman Crimson (#8B1A1A)
  • Secondary Structural Blocks (Staff / Auxilia / Logistics / Brass): Punic Ochre (#B5824A)
  • Specialist / Iron / Masonry / Heavy Engineering: Iron-Grey (#4A4A4A)
  • Titling, Cartouches, Rank Medallions: Muted Roman Gold (#B89954)
  • Typography: Inscriptional Roman serif for capitals and titling; clean book serif for data and notes.

Layout Architecture (Five Tiered Panels)

Panel I: Header & Institutional Ledger (Top Banner)

  • Title Cartouche: "LEGIO: ANATOMY OF A STANDING LEGION (30 BC–AD 96)"
  • Sub-banner: "THE ANCIENT WORLD'S ONLY PERMANENT INSTITUTION"
  • Institutional Ledger Block (Data Bar):
    • "ESTABLISHMENT: 28 LEGIONS (30 BC–AD 9) → 25 LEGIONS (AD 9) → 28–30 LEGIONS (FLAVIAN)" [AGrade A/B]
    • "SERVICE TERMS: 16–20 YEARS PLUS RECALL · PERMANENT OATH TO PRINCEPS" [AGrade A]
    • "FINANCE: AERARIUM MILITARE (EST. AD 6) · INHERITANCE & AUCTION TAXES" [AGrade A]
    • "STIPENDIUM: 300 SESTERCES/YEAR (CAESAR) → RAISED TO 400 SESTERCES (+33%, AD 84)" [AGrade A]
    • "TOTAL UNIT STRENGTH: ~5,280 HEAVY FOOT + 120 HORSE (ESTABLISHMENT ARITHMETIC)" [BGrade B]

Panel II: Command Echelon & Headquarters (Principia)

  • Exploded Command Flow:
    • Legatus Legionis: "LEGATUS LEGIONIS (SENATORIAL COMMANDER · 3-YEAR TERM)" [Crimson-and-gold medallion]
    • Staff Officers: "1 TRIBUNUS LATICLAVIUS (SENATORIAL) · 5 TRIBUNI ANGUSTICLAVII (EQUESTRIAN)" [Ochre medallion]
    • Camp Administrator: "PRAEFECTUS CASTRORUM (CAMP PREFECT · EX-PRIMUS PILUS)" [Crimson-and-iron medallion]
    • Headquarters Clerks & Tabularium: "CORNICULARII · LIBRARII · STRENGTH REPORTS & CASH ACCOUNTS (VINDOLANDA INK TEXTURE)" [AGrade A]
    • Sacred Center: "AQUILA (LEGIONARY EAGLE) · IMAGINES IMPERATORIS · CUSTODES ARMORUM"

Panel III: The Fighting Core (Exploded Cohorts & Centuries)

  • Cohort I (The Vanguard & Shrine Guard):
    • "COHORS I: 5 DOUBLE-CENTURIES (~800 MEN) · 5 CENTURIONS (PRIMUS PILUS TO PRIMUS HASTATUS)" [BGrade B]
    • Houses the Eagle, legionary treasury, and veteran evocati.
  • Cohorts II to X (Standard Tactical Echelon):
    • 9 horizontal modular rows, each labeled: "COHORS II" through "COHORS X"
    • "PER COHORT: 6 CENTURIES OF 80 MEN (480 HEAVY FOOT)" [BGrade B]
    • Internal century explosion: "CENTURIA (80 MEN) = 10 CONTUBERNIA (8-MAN TENT-GROUPS)"
    • Century officers indicated: "CENTURIO (VINE-STAVE) · OPTIO · SIGNIFER · CORNICEN · TESSERARIUS"
    • Total line infantry: "4,320 FOOT (COHORTS II–X) + 800 FOOT (COHORS I) = 5,120 CITIZEN INFANTRY"
  • Legionary Cavalry:
    • "EQUITES LEGIONIS: 120 MOUNTED TROOPERS (4 TURMAE) · RECONNAISSANCE & DISPATCH" [BGrade B]

Panel IV: Technical Park, Ordnance & Medical Corps

  • Artillery Train (Ballistaria):
    • "ARTILLERY: 60 CARROBALLISTAE (1 PER CENTURY) + 10 ONAGRI/STONE-THROWERS" [BGrade B]
    • Note: "CATAPULT BOLTS RECOVERED AT KALKRIESE CORRIDOR" [AGrade A]
  • Medical Corps (Valetudinarium):
    • "MEDICI · CAPSULARII (DRESSERS) · SPECIALIST SURGEONS"
    • Note: "SURGICAL INSTRUMENTS EXCAVATED IN FIELD ASSEMBLAGES" [AGrade A]
  • Artificers & Surveyors (Immunes):
    • "MENSORES (SURVEYORS) · FABRI (CARPENTERS & SMITHS) · MINERS & DITCHERS"
    • Exemption from fatigue duties in exchange for technical production.

Panel V: The Output Stream (The Machine of Built Empire)

  • Civil & Strategic Engineering Flowchart (Infographic base):
    • "ROADS & CAUSEWAYS: VIAE MILITARES PAVED EMPIRE-WIDE FOR LATERAL REDEPLOYMENT"
    • "CANALS: FOSSA DRUSIANA (12 BC) · FOSSA CORBULONIS (23 ROMAN MILES, AD 47 DENDRO-CERTIFIED)" [AGrade A]
    • "FORTRESS ARCHITECTURE: TIMBER-AND-TURF REBUILT IN PERMANENT DRESSED STONE"
    • "FORTRESS RETREAT & SALVAGE: 10 TONS OF UNUSED IRON NAILS BURIED AT INCHTUTHIL (AD 87)" [AGrade A]
    • "SIEGEWORKS: 5-MILE METROPOLITAN WALL IN 3 DAYS (JERUSALEM) · ASSAULT RAMP (MASADA)" [AGrade A/B]
    • "LIMES FORTIFICATION: WATCHTOWERS, EARTHWORKS & PALISADES (RHINE-DANUBE REENTRANT)" [AGrade A]

Image prompt (3:4)

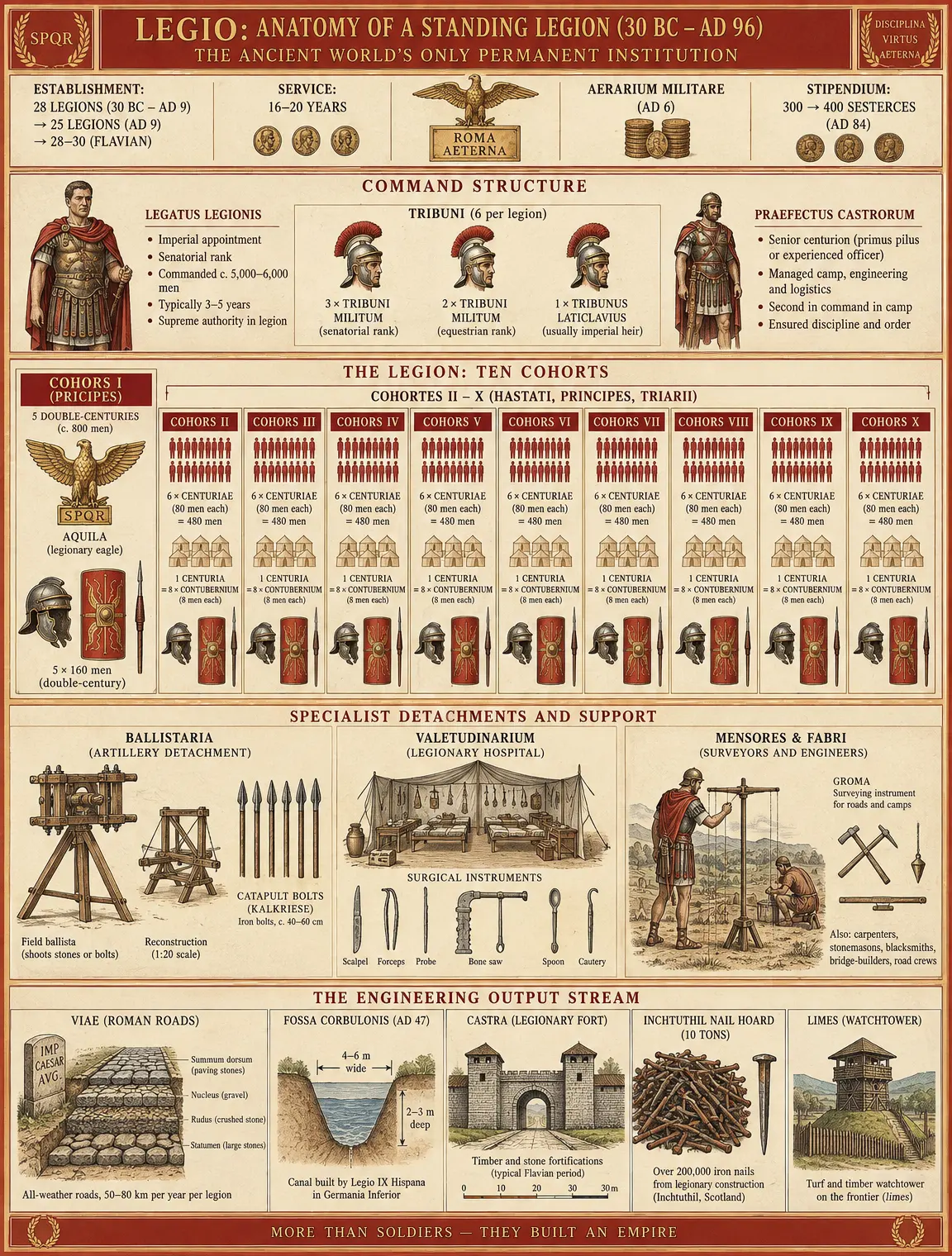

A detailed technical military infographic poster in the historical-atlas and architectural-plate style: 'LEGIO: ANATOMY OF A STANDING LEGION (30 BC–AD 96)', subtitle 'THE ANCIENT WORLD'S ONLY PERMANENT INSTITUTION'. Strict palette: antique cream parchment background (#F4EBD5), terracotta frame border (#A85638), Roman crimson (#8B1A1A), Punic ochre (#B5824A), iron-grey (#4A4A4A), and muted gold (#B89954) accents. The layout is arranged into five clean horizontal and exploded modular registers with crisp serif labels and precise schematic line-work. Top tier features a gold cartouche title with an institutional ledger showing: 'ESTABLISHMENT: 28 LEGIONS (30 BC–AD 9) → 25 LEGIONS (AD 9) → 28–30 (FLAVIAN)', 'SERVICE: 16–20 YEARS', 'AERARIUM MILITARE (AD 6)', and 'STIPENDIUM: 300 → 400 SESTERCES (AD 84)'. Below, an exploded command structure displays 'LEGATUS LEGIONIS', 'TRIBUNI', and 'PRAEFECTUS CASTRORUM' leading down to the central register: an exploded diagram of ten cohorts. 'COHORS I' is shown as five double-centuries with the gold 'AQUILA' legionary eagle standard; cohorts 'COHORS II' through 'COHORS X' are displayed as neat crimson blocks divided into 80-man 'CENTURIA' units and 8-man 'CONTUBERNIUM' tent-groups, with miniature helmet and shield icons. Flanking registers depict technical detachments in iron-grey and ochre: 'BALLISTARIA' showing field catapults and 'CATAPULT BOLTS (KALKRIESE)', 'VALETUDINARIUM' showing 'SURGICAL INSTRUMENTS', and 'MENSORES & FABRI' surveyors with groma tools. The bottom tier illustrates the 'ENGINEERING OUTPUT STREAM' as clean architectural diagrams: paved road section ('VIAE'), canal profile ('FOSSA CORBULONIS AD 47'), stone castra gate, 'INCHTUTHIL NAIL HOARD (10 TONS)', and turf limes watchtower. Ultra-clean historical drafting style, perfectly legible text in quotes, no spurious pseudo-lettering, highly structured graphic design. Aspect ratio 3:4.
